Fuel Cell and Utilization of Hydrogen Energy
Fuel Cell and Utilization of Hydrogen Energy
Fuel Cell and Utilization of Hydrogen Energy
Fuel Cell and Utilization of Hydrogen Energy
Fuel Cell and Utilization of Hydrogen Energy
Fuel Cell and Utilization of Hydrogen Energy
Fuel Cell and Utilization of Hydrogen Energy
Fuel Cell and Utilization of Hydrogen Energy

Fuel Cell and Utilization of Hydrogen Energy

Provide solutions for key materials of fuel cell system, including metal gas diffusion layer, metal bipolar plates and fuel cell stack. Our metal GDLs have been supplied in mass production to international high-tech companies. For metal BBPs and fuel cell stacks, we are the top suppliers in China.

Features

Features are as below:

•­  Titanium-based Metal Gas Diffusion Layer: High porosity with enhanced waterproofing and permeability, excellent mechanical properties under fuel cell operating conditions

•­  Metal Bipolar Plates: low contact resistance and superior anti-corrosion performance, achieved by customized flow field design and optimal metal anti-corrosion coating.

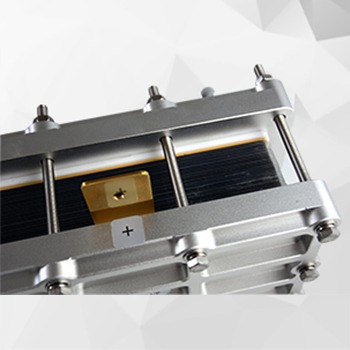

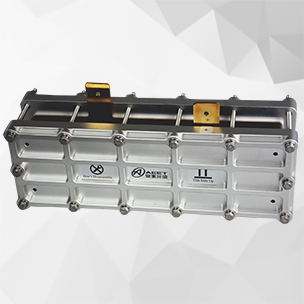

•­  Self-humidifying Fuel Cell Stack:  Low volume, high power density, stable performance and long-life extension with fast cold start, self-detection and alarm features.



Typical Applications

Typical applications are as below:

•­  Titanium-based Metal Gas Diffusion Layer:In mass production, qualified suppliers of international hi-tech companies.

•­  Fuel cell stack: 5kW, 10kW, 10kW, 20kW, 30kW, 60kW series in production.

Technical Specifications

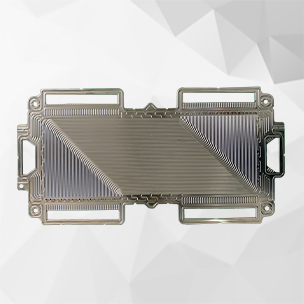

Metal Bipolar Plates

  Designation Steel Grade SUS316L
Mpa Yield strength/Mpa 265
Mpa Tensile Strength/Mpa 606
mm Material thickness/mm 0.1
(mΩ·cm²@1.5Mpa) Interface contact resistance(mΩ·cm²@1.5Mpa) <5
  coating C
 (A/cm²) Corrosion current density (A/cm²) <1E-6
  Coating preparation method PVD

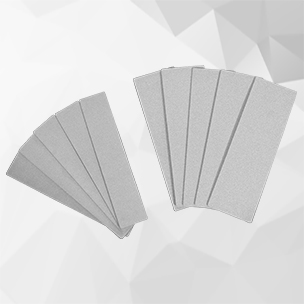

 Titanium-based Metal Gas Diffusion Layer Material   Titanium
 Size  customization
 Porosity >50%
 Gurley time 6S  About 6s
Fuel Cell Stack customization
