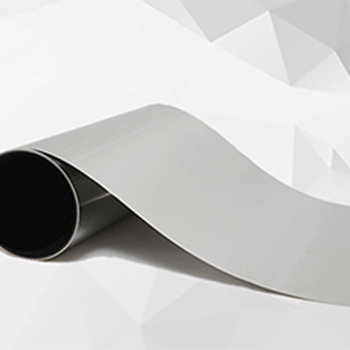

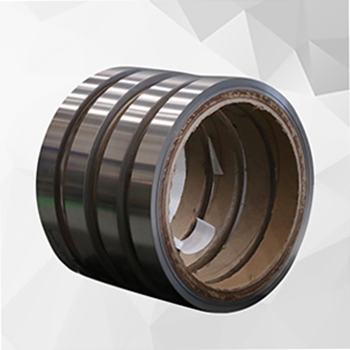

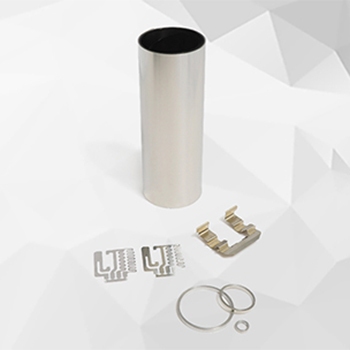

Precision Strips for Electronics mainly refers to stainless steel strip, which apply as various component or parts in consumer electronics, such as SUS304, SUS301, SUS316L. Special physical properties are usually required for these strips, including mechanical properties, thickness tolerance, flatness, finish, roughness, cleanliness, bending, etc. Typical applications: touch switch, backlight plate, connector, power battery plate, etc.
The minimum thickness of strip is 0.03mm, the maximum width is 450mm, and the tolerance limit can reach ±1.5μm. Various sizes can be customized according to customers' needs.
Features are as below:
• Equipped with high precision machine represented by Sendzimir 20-high rolling mill, continuous bright annealing furnace and tension leveler, can sufficiently meet customers’ requirements.
• Products with homogeneous micro-structure and excellent comprehensive mechanical properties, high thickness accuracy and surface quality, which benefits from long-term R&D, on-site monitoring and AGC control system.
Typical applications are as below:
• Consumer electronics: screens, BLU(Back-Light Unit) and shield, connectors, parts for wireless headsets, 5G base station devices, etc..
|
Precision Strip for Consumer Electronics Typical Product |
|||||
| Brand | TEMPER | HV | Yield Strength | Tensile Strength | Elongation |
| SUS 301 | ANN | ≤218 | 205 | 520 | 40 |
| 1/2H | 310 | 510 | 930 | 10 | |
| 3/4H | 370 | 745 | 1130 | 5 | |
| FH | 430 | 1030 | 1320 | 3 | |
| EH | 490 | 1275 | 1570 | – | |
| SUS 304 | ANN | ≤200 | 205 | 520 | 40 |
| 1/2H | 250 | 470 | 780 | 6 | |
| 3/4H | 310 | 668 | 930 | 3 | |
| FH | 370 | 880 | 1130 | – | |
| …… | |||||
| Precision Strip for Consumer Electronics Specification | ||||
| Type | Thickness/mm | Width/mm | Length/mm | Remark |
| Cold-rolled Strip | 0.1-2.0 | 200-450 | Coil | |
| Cold-rolled Thin Strip | 0.03-0.1 | 200-400 | Coil | |
